Torsional Couplings

  • Family of couplings designed specifically to address problematic torsional vibration
  • Wide variety of solutions for diesel engine driven equipment
  • Excellent engineering staff on hand; ready to help
Torsional Couplings

Resources

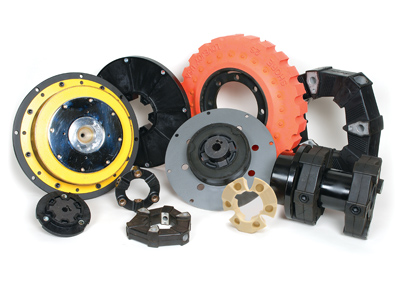

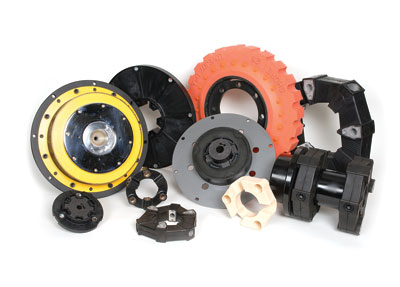

Lovejoy offers a wide range of torsional couplings engineered to solve torsional vibration problems found in diesel engine driven equipment and other applications where torsional vibrations are prevalent. These include all internal combustion engines, reciprocating pumps and compressors, as well as variable frequency drives (VFD).

Lovejoy torsional coupling are designed to dampen torsional vibrations and tune, or adjust the system’s critical speeds away from the application’s operating range. With the proper information, Lovejoy engineers can perform a Torsional Vibration Analysis or TVA for your application to assist in the selection of a torsional coupling.

Torsional Coupling Product Selection

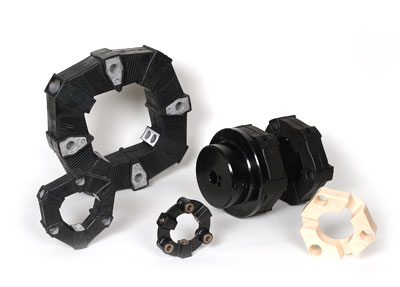

LF Series

LF Series

  • Most versatile Lovejoy torsional coupling
  • Configurations include flange to shaft, shaft to shaft, and floating shaft
  • Available in high temp rubber, Neoprene, Hytrel®, or Zytel®
  • Nominal torque: up to 26,500 in-lb (3000 Nm)
Learn More
LVK Series

LVK Series

  • Designed for direct mounting on SAE J620 and metric flywheels
  • Element bonded to flywheel mounting plate and LK style hub housing
  • Available in high temp rubber (HTR) or EPDM
  • Nominal torque: up to 5,800 in-lb (655 Nm)
Learn More
LV Series

LV Series

  • Economical alternative for agricultural & off-highway industrial equipment
  • Designed for mounting on standard SAE J620 flywheels
  • Available in high temp rubber (HTR) or EPDM
  • Nominal torque: up to 10,820 in-lb (1223 Nm)
Learn More
LM Torsional

LM Series

  • Designed for mounting on standard SAE J620 flywheels
  • Available in high temp rubber (HTR), EPDM, or Silicone
  • Nominal torque: up to 33,600 in-lb (3800 Nm)
Learn More
LK Series

LK Series

  • Simple two-piece design for low-mid power diesel driven hydraulic systems
  • Composed of flywheel mounted element & star shaped hub
  • Available in Zytel®
  • Nominal torque: up to 21,240 in-lb (2400 Nm)
Learn More
